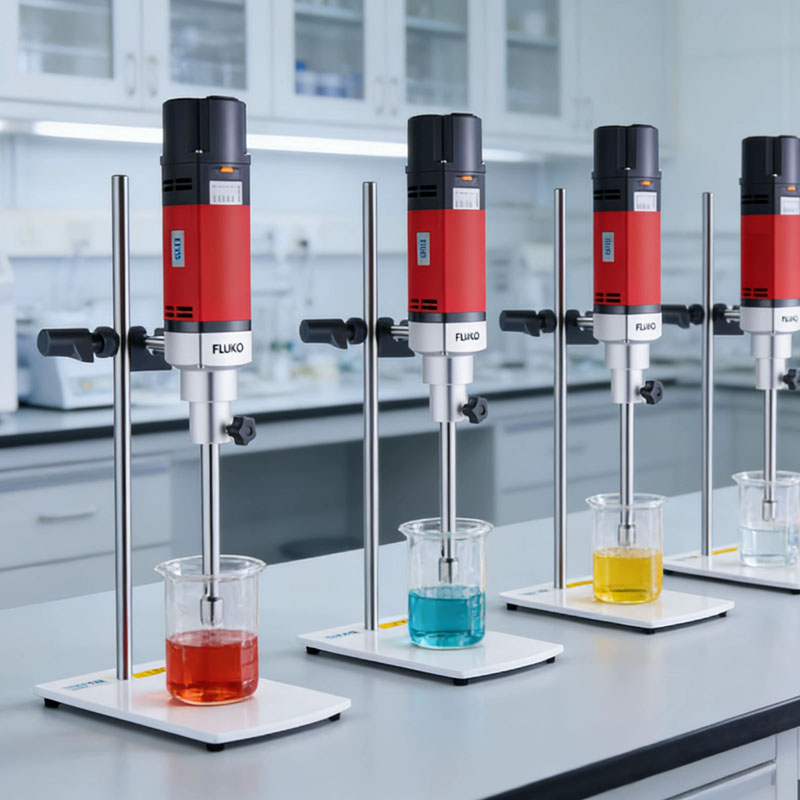

The FA30 (D) is a small-scale, high-performance disperser with a lightweight and durable structural design. It achieves linear speeds up to 35 m/s and is suitable for various process applications. A digital display version is available as an option.
The FA30(D) is a small-scale, high-performance disperser with a streamlined design, easy operation, strong expandability, and lightweight construction. It can operate for extended periods, achieving linear speeds up to 35 m/s, easily meeting the demands of various dispersion and emulsification experiments. It is suitable for a variety of processes, including dispersion, emulsification, homogenization, wet milling, dissolution, and suspension preparation. A digital display version is available as an option.
| Order # | 6231111 | 6331111 |
| Model | FA30 | FA30D |
| Motor power | 1050W | 1050W |
| Power supply | 220V，50/60Hz | 220V，50/60Hz |
| Working capacity (H2O) | 0.2~10000mL | 0.2~10000mL |
| Maximum working viscosity | 8000cP | 8000cP |
| Rotation speed range | 3500~25000rpm | 3500~25000rpm |
| Speed display | Scale | Digital display |
| Speed control | Stepless | Stepless |
| Medium-contact material | SS316L | SS316L |
| Shaft sleeve material | PTFE | PTFE |
| Standard agitator | 30G | 30G |
| Permissible temperature range | 5~40℃ | 5~40℃ |
| Permissible humidity | 80% | 80% |
| Work frame, stand base | Standard | Standard |
| Overall dimensions | 215×310×730 | 215×310×730 |
| Weight | ~9.8kg | ~9.8kg |
| Package | Carton | Carton |
