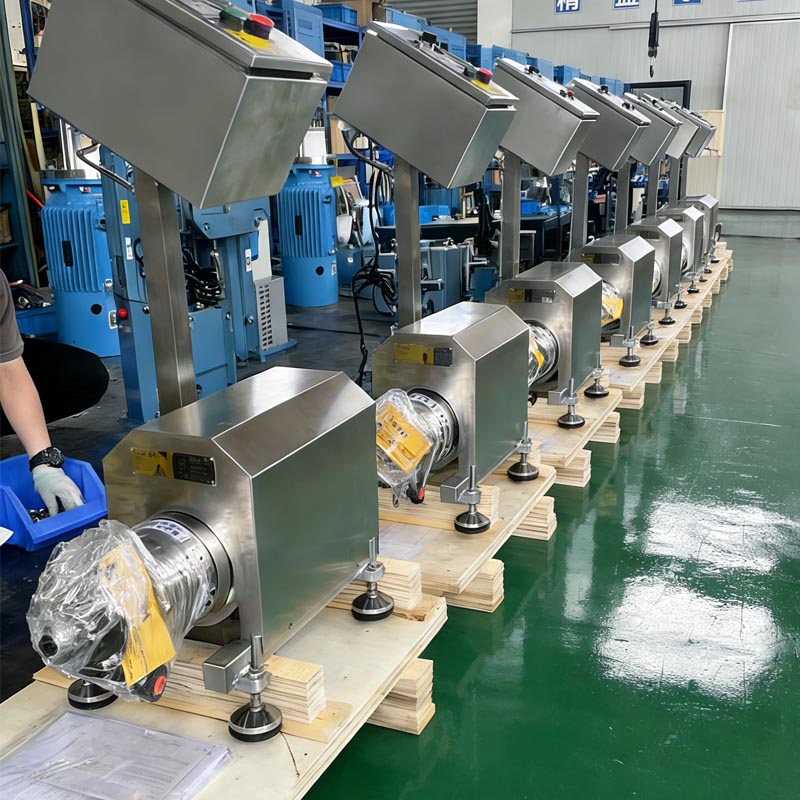

The FDC3 series is a pilot-scale in-line disperser equipped with three shearing components, featuring a compact and stable design that meets sanitary requirements.
The FDC3 series is a pilot-scale in-line disperser equipped with three sets of high-precision shear components. It can easily complete in-line dispersion, emulsification, and homogenization processes in the laboratory, providing accurate references for production use. The machine has a compact structure, stable operation, adjustable and displayable speed, and its default design meets sanitary requirements. It is suitable for processes requiring high precision, such as dispersion, homogenization, crushing, homogenization, and mixing.
| Order # | 6721000 | 6741000 |
| Model | FDC3/40 | FDC3/60 |
| Motor power | 1500W | 2200W |
| Power supply | 220V，50Hz | 220V，50Hz |
| Maximum flow rate range(H2O) | 15L/min | 25L/min |
| Speed range | 300-6000rpm | 300-6000rpm |
| Temperature | 120℃ | 120℃ |
| Speed display | Digital display | Digital display |
| Speed control | Frequency control | Frequency control |
| Inverter | Standard | Standard |
| Medium-contact material | SS316L、FKM | SS316L、FKM |
| Standard working chamber | Stainless steel | Stainless steel |
| Standard dispersing agitator | 4G/4M/4F/3 Stages | 4G/4M/4F/3 Stages |
| Seal type | Mechanical seal | Mechanical seal |
| Inlet/outlet size | 1’’,3/4’’(Clamp connection) | 1’’,3/4’’(Clamp connection) |
| Process type | Inline processing | Inline processing |
| Overall dimensions | 700×380×370 | 736×380×410 |
| Protection grade for motor hood | IP54 | IP54 |
