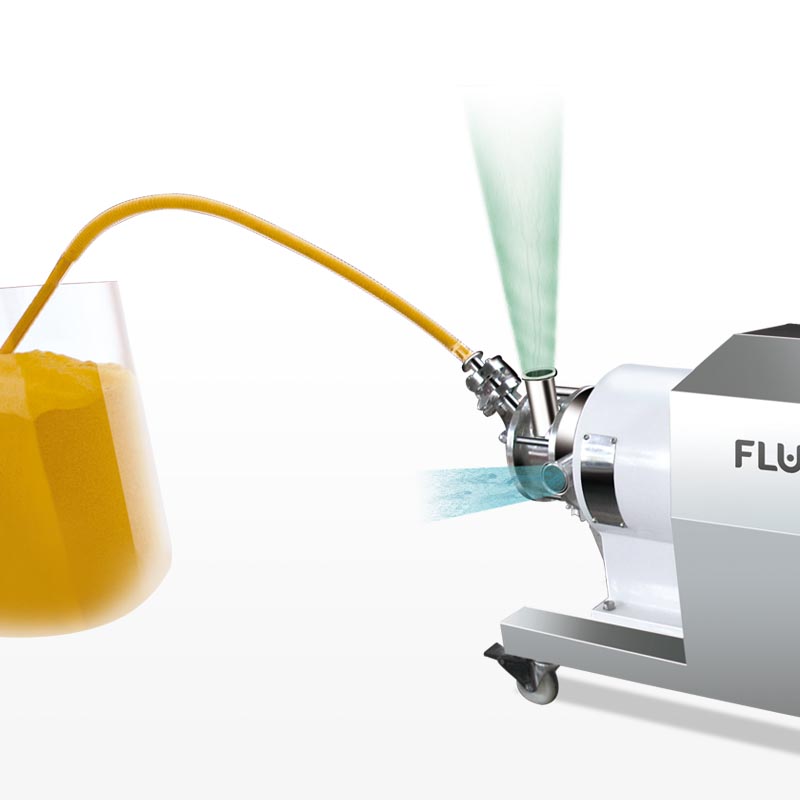

The PD-X series is a production-type in-line solid-liquid dispersion and mixing equipment that can handle the mixing and dispersion of difficult-to-dissolve powders. It operates in a vacuum environment with no air ingress and is suitable for industries such as new materials and chemicals.
The PD-X series is a production-type in-line solid-liquid dispersion and mixing equipment, specifically designed for the mixing and dispersion of difficult-to-dissolve powders. During mixing, air ingress is minimized. Its unique structure ensures that all powder is pre-hydrated before entering the mixing chamber, eliminating "fish-eye" phenomena. This system effectively reduces mixing time, avoids over-processing shear-sensitive products, and allows for recirculation. Dust-free and loss-free powder suction pipe/hopper feeding enables rapid powder addition, wetting, and non-agglomerated dispersion and mixing. The powder is wetted and dispersed into the liquid under vacuum, effectively preventing air ingress, avoiding agglomeration, resulting in better reaction effects, higher material utilization, and higher final product quality. Suitable for industries such as new materials and chemicals.
| Model | PD10-X | PD50-X | PD110-X | PD130-X | PD190-X | PD230-X |
| Power kW | 1.5~2.2 | 11 | 11~18.5 | 22~30 | 37~55 | 55~90 |
| Motor rotation speed rpm | 3600 | 5200 | 3000 | 3000 | 3000 | 3000 |
| Powder suction speed (suction hose) kg/min | 0.1~0.5 | 1~2 | 1~10 | 2~20 | 3~50 | 4~50 |
| Powder suction speed (hopper) kg/min | 0.2~1 | 1~6 | 3~100 | 6~200 | 10~400 | 10~500 |
| Maximum applicable viscosity cP(without pump) | 1000 | 2000 | 2000 | 4000 | 4000 | 6000 |
| Maximum applicable viscosity cP(with pump) | 5000 | 10000 | 10000 | 50000 | 100000 | 100000 |
| Inlet pressure bar | 0.02~0.1 | 0.05~0.2 | 0.1~0.4 | 0.1~0.4 | 0.1~0.6 | 0.1~0.9 |
| Maximum outlet pressure (when sucking powder) bar | 0.1 | 0.2 | 0.3 | 0.4 | 0.7 | 0.9 |
| Maximum outlet pressure (when not sucking powder) bar | 0.5 | 1 | 2.5 | 3 | 4 | 5 |
| Maximum flow rate (when not sucking powder)H2O m3/h | 2.5 | 25 | 20 | 40 | 60 | 80 |
| Maximum flow rate (when sucking powder) m3/h | 1.5 | 15 | 10 | 25 | 40 | 50 |
