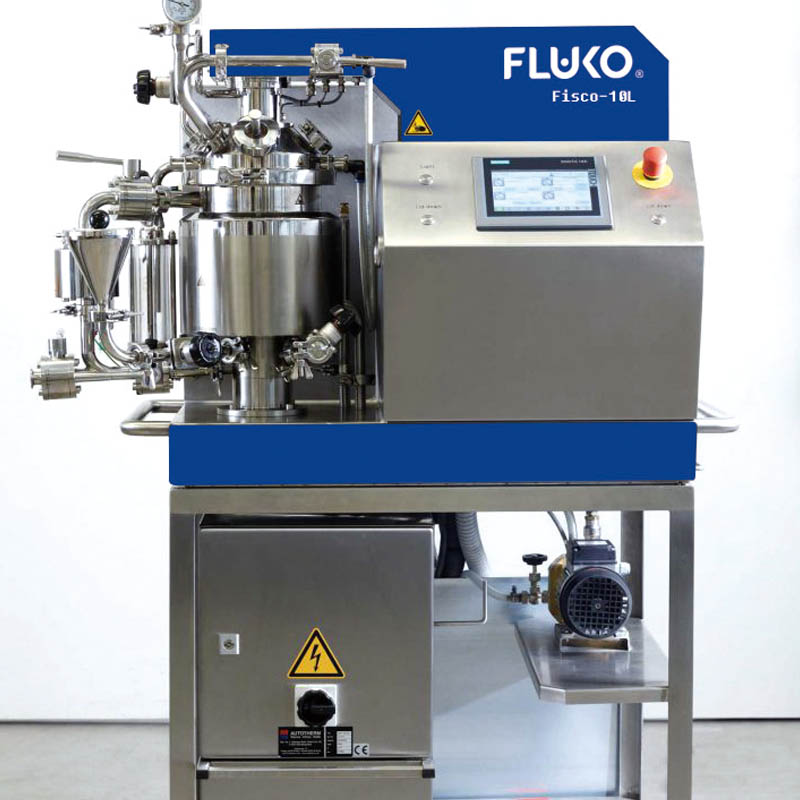

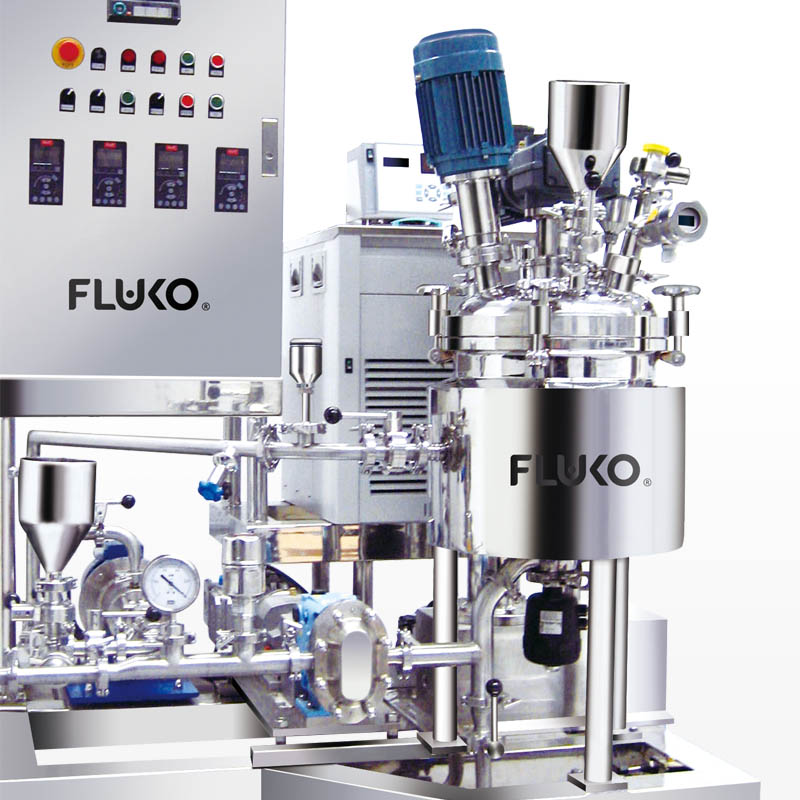

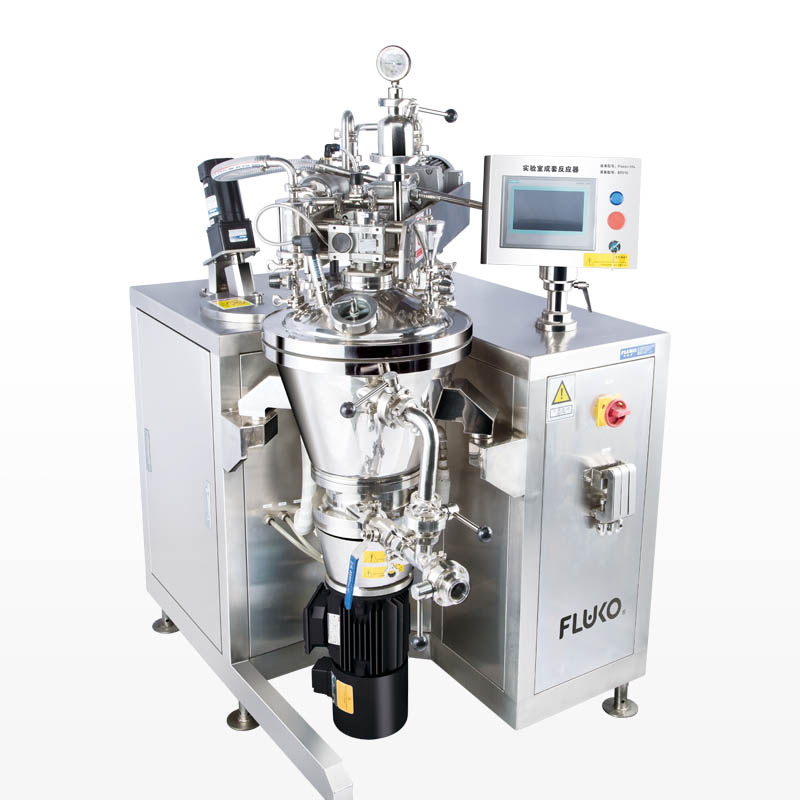

Fisco-Pro is a pilot-scale vacuum emulsification and homogenization system that can operate in a vacuum pressure environment. Different stirring and homogenization system options can be selected depending on the process scenario.
The Fisco-Pro series is a newly launched pilot-scale vacuum emulsification and homogenization system. In line with classic European designs, it enables the dispersion, emulsification, homogenization, and mixing of materials under vacuum or pressure. Highly customizable, it allows for the replacement of different agitators and the configuration of homogenization systems in various forms and methods to suit different material properties and industry characteristics.
| Order# | Fisco-10 Pro | Fisco-20 Pro |
| Power supply | 220/380V，50/60Hz | 220/380V，50/60Hz |
| Minimum mixing capacity | 1L | 2L |
| Minimum emulsifying capacity | 2L (External cycle) | 4L (External cycle) |
| Maximum emulsifying capacity | 10L(Internal homogeneity) | 20L(Internal homogeneity) |
| Maximum working temperature | According to the user's working conditions to design | According to the user's working conditions to design |
| Vacuum degree | ||
| Maximum processing viscosity | ||
| Stirring motor power | ||
| Stirring speed | ||
| Mixer arrangement | Anchor type with scraping wall agitatior | Anchor type with scraping wall agitatior |
| Material of the scraper | PTFE | PTFE |
| Installation form of the homogenizer | Undermount | Undermount |
| Homogenizer power | 1.1kw | 1.1kw |
| Homogenizer speed range | 600-6000rpm（We can specially design according to the user's working conditions） | 600-6000rpm（We can specially design according to the user's working conditions） |
| homogeneous function | It can realize internal and external homogenization/external powder suction and liquid suction function | It can realize internal and external homogenization/external powder suction and liquid suction function |
| Form of working head | Hishear dispersing and emulsifying working head | Hishear dispersing and emulsifying working head |
| Functional port of the reactor | Vacuum port, hopper port, homogeneous port, stirring port, temperature measuring port, instrument port, sight glass and lamp port, etc. | Vacuum port, hopper port, homogeneous port, stirring port, temperature measuring port, instrument port, sight glass and lamp port, etc. |
| Medium-contact material | SIC、SS316L、FKM、PTFE | SIC、SS316L、FKM、PTFE |
| Control System | PLC control | PLC control |
| Cleaning function | Suitable for CIP/SIP | Suitable for CIP/SIP |
| Form of the bracket lifting | Electric lifting | Electric lifting |
| Allowable ambient temperature | 5-40℃ | 5-40℃ |
| Allowable relative humidity | 80% | 80% |
