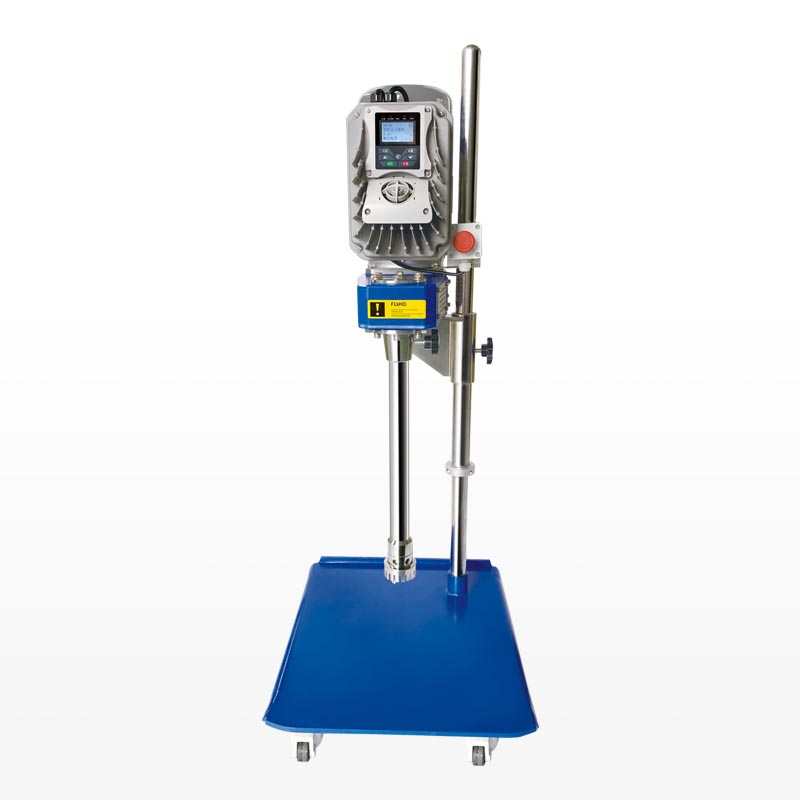

The FA60 Pro is a pilot-scale high-speed disperser with a maximum capacity of 50L. It is compatible with various working heads and comes standard with a gas spring support and overload protection.

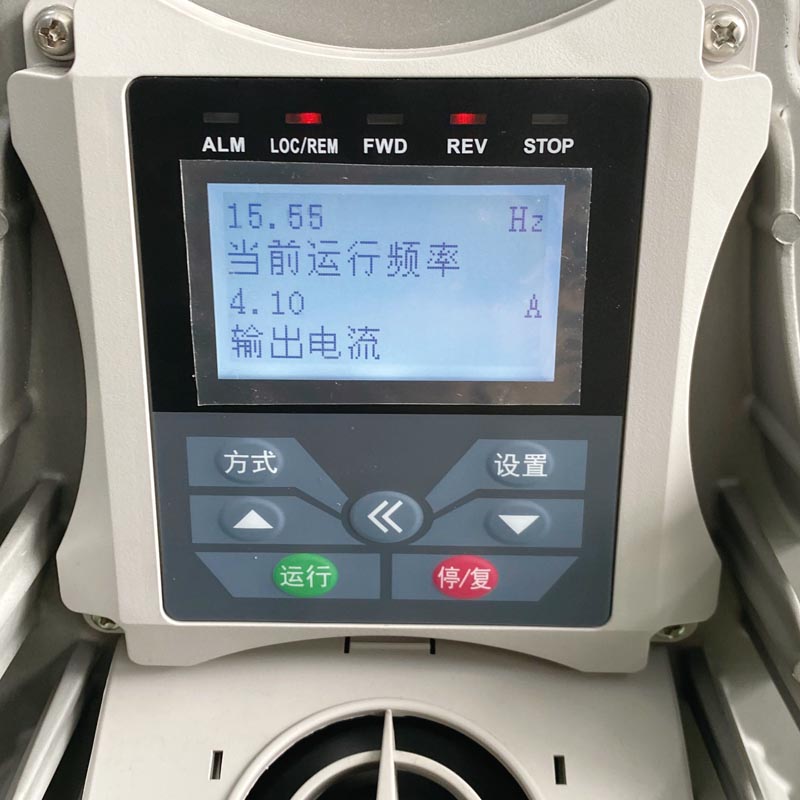

The FA60 Pro is a high-speed disperser designed for laboratory pilot-scale testing, with a maximum capacity of 50L. It is suitable for both pilot-scale and small-scale production. A wide speed range ensures high shear rate operation. It features multiple working heads to adapt to different process requirements, such as efficient stirring, dispersion, homogenization, and emulsification. Standard features include a gas spring support, digital speed display, and overload protection.
FA60 PRO Parameters
| Order# | 10010 |
| Power supply | 220V 1ph |
| Frequency | 50 Hz |
| Input power | 3000 W |
| Output power | 2500 W |
| Capacity(H2O) | 2~50 L |
| Max viscosity | 5000 cP |
| Rotation speed | 1000~9500 rpm |
| Speed control | frequency control |
| Speed deviation | 3‰ |
| Speed control | stepless |
| Rotation speed display | LED |
| Standard agitator | 60PDG |
| Noise(no agitator) | 75 dB(A) |
| Dimensions | 440×260×492 mm |
| Weight | 35 kg |
| Package | Wooden box |
FA60 PRO Lifting parameters
| Order# | 251301 |
| Lifting mode | Gas spring |
| Material | SS304/(C.S coated) |
| Max height | 1240 mm |
| Max stroke | 500 mm |
| Size of base plate | 500×575 mm |
| Dimensions | 500×575×1240 mm |
| Weight | ~25 kg |
