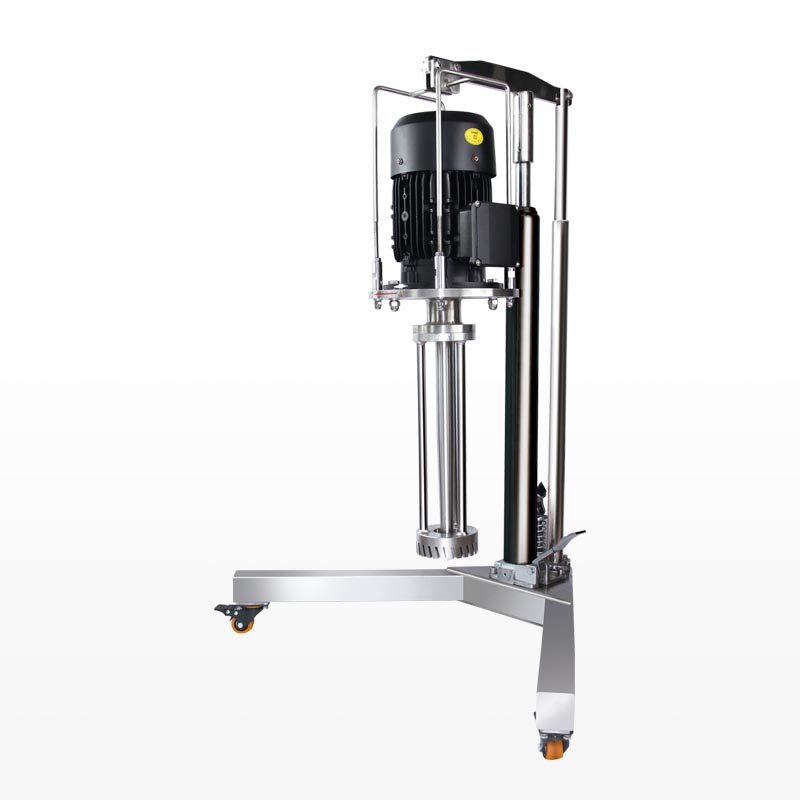

The FA90 (C) is a pilot-scale disperser with a maximum capacity of 50L. It features interchangeable working heads, supports variable frequency speed control and lifting functions, and offers optional hydraulic manual lifting or electric lifting.
The FA90(C) is a laboratory-scale pilot-scale disperser designed for pilot-scale, simulated production, and small-batch factory production, with a maximum throughput of 50L. It features interchangeable working heads to accommodate different materials and process requirements, enabling efficient mixing, dispersion, emulsification, homogenization, and liquid-liquid mixing of large quantities of materials. The machine incorporates variable frequency speed control, speed display, and electric or manual hydraulic lifting functions.
| Order # | 6291241 | 6292242 |
| Model | FA90 | FA90C-242-M |
| Motor power | 1500W | 1500W |
| Power supply | 220V，50Hz | 220V，50Hz |
| Working capacity(H2O) | 10-50L | 10-50L |
| Maximum working viscosity | 8000cP | 8000cP |
| Speed range | 600-3600rpm | 600-3600rpm |
| Speed display | Digital display | Digital display |
| Speed control | Frequency control | Frequency control |
| Medium-contact materiall | SS316L | SS316L |
| Shaft sleeve material | PTFE | / |
| Standard dispersing agitator | 90F | 90F |
| Permissible temperature range | 5-40℃ | 5-40℃ |
| Permissible humidity range | 80% | 80% |
| Protection grade for motor hood | IP54 | IP54 |
| Inverter | Standard | Standard |
| Overload protection | Yes | Yes |
| Process type | Batch processing | Batch processing |
| Work frame, stand base | Electric lifting | Manual lifting |
| Work frame, stand base material | SS304 | SS304 |
| Lifting range | 400 | 450 |
| Overall dimensions | 710×550×1060 | 800×650×1000 |
| Weight | ~50kg | ~50kg |
| Package | Wooden case | Wooden case |
