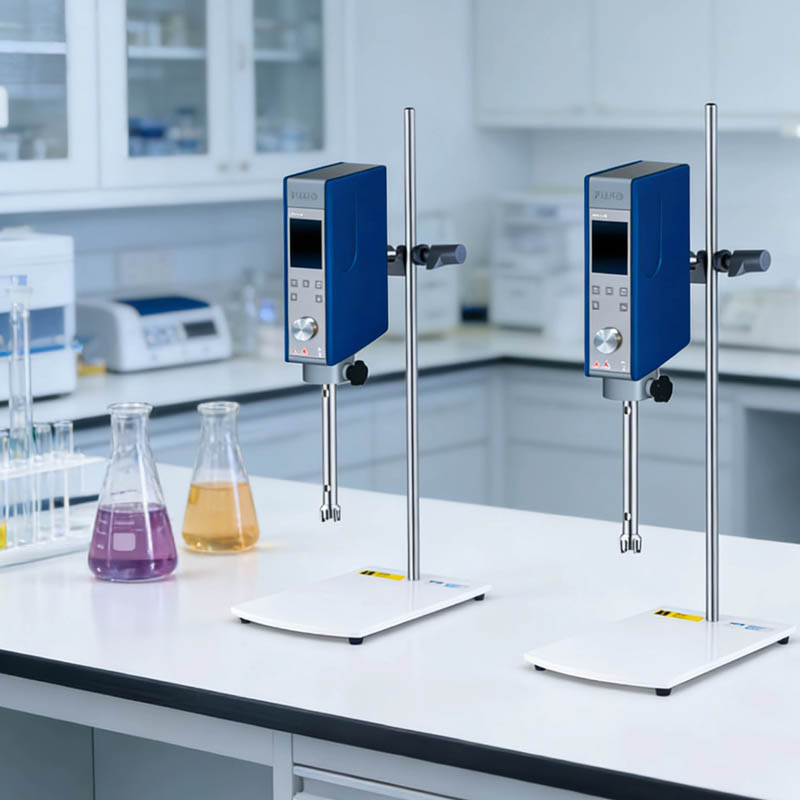

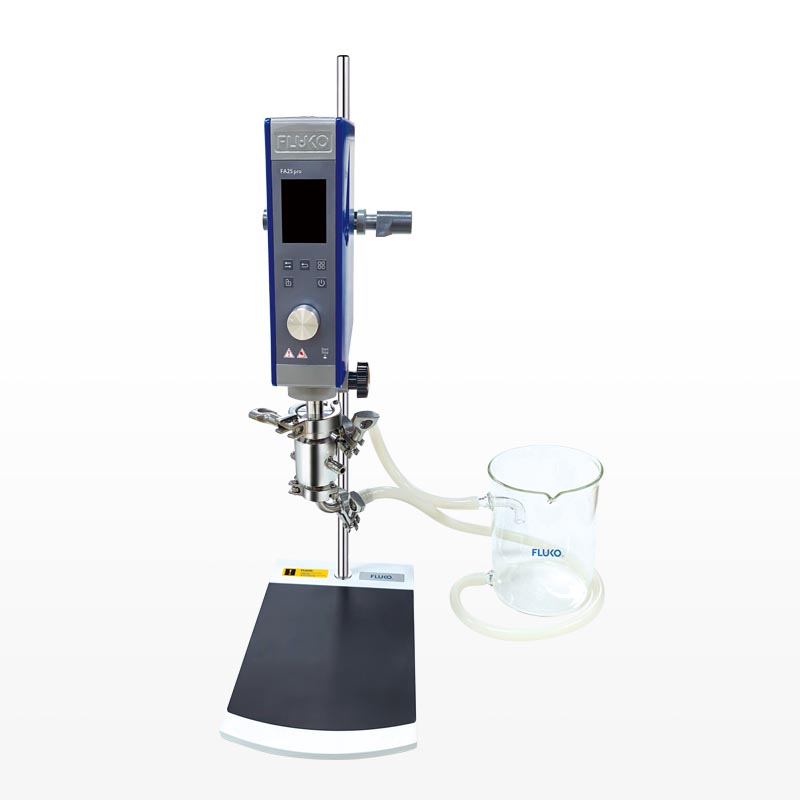

The FA25 Pro is a pilot-scale high-performance disperser that uses a brushless motor with a speed of up to 26,000 rpm. It has a wealth of functions and can be connected to a host computer for remote communication and control.
The FA25 Pro is a pilot-scale high-performance disperser featuring a brushless motor, intelligent speed control, and speed compensation. It boasts a speed range of up to 26,000 rpm. A variety of dispersing heads are available, suitable for various processes including dispersion, emulsification, homogenization, wet milling, dissolution, suspension preparation, as well as the crushing and homogenization of animal and plant tissues.
| Order # | 10090 |
| Model | FA25 pro |
| Power supply | 200~245V，50/60Hz |
| Input power of motor | 650W |
| Output power of motor | 500W |
| Motor | Brushless DC |
| Processing capacity | 1~5000mL |
| Maximum viscosity | 8000cP |
| Range of speed | 2000~26000rpm |
| Speed deviation | 2% |
| Speed control | Stepless speed regulation |
| Speed display | TFT colorful LCD screen |
| Speed dynamic measurement and display | Yes |
| Torque dynamic monitoring and display | Yes |
| Noise (without agitator) | ≤70dB (A) |
| Diameter of extension arm | 14mm |
| Length of extension arm | 168mm |
| Configuration of Standard agitator | S25G |
| Process Type | Batch Processing |
| External temperature sensor | PT1000 (Optional Accessories) |
| Temperature measurement range | -50~300℃ |
| Dynamic temperature monitoring and display | Yes |
| Temperature measurement accuracy | 0.1℃ |
| Timing range | 99h59m59s |
| Speed memory | Yes |
| Button lock and display | Yes |
| Host computer and data connection | Yes |
| Intermittent control | Yes |
| Intermittent program saving and loading | Yes |
| Allowable continuous operation time | 100% |
| Allowable ambient temperature | 5~40℃ |
| Allowable ambient humidity | 80% |
| Overheating protection | Yes |
| Protection level | IP30 |
| Fault display | Yes |
| Identification of agitator installation | Yes |
| USB interface | USB Type-C |
| Bluetooth connection | Yes |
| Communication protocol | RS485 |
| PC software | Flukolabsoft (USB or Bluetooth connection) |
| Shell material | Aluminum Alloy |
| Overall dimensions | 220×350×720mm |
| Weight | ~3.5kg |
| Package | Carton |
