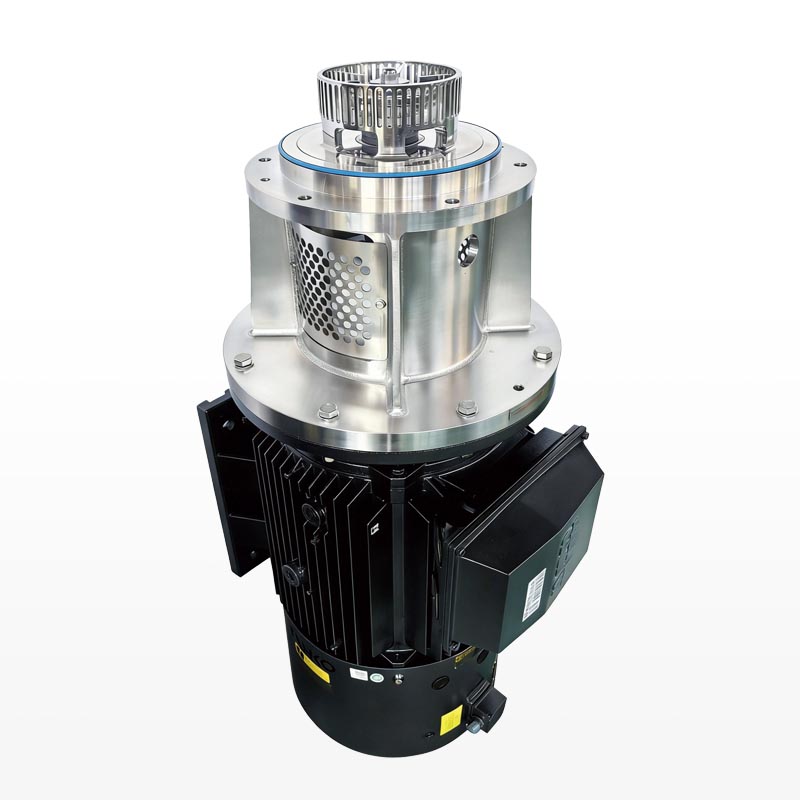

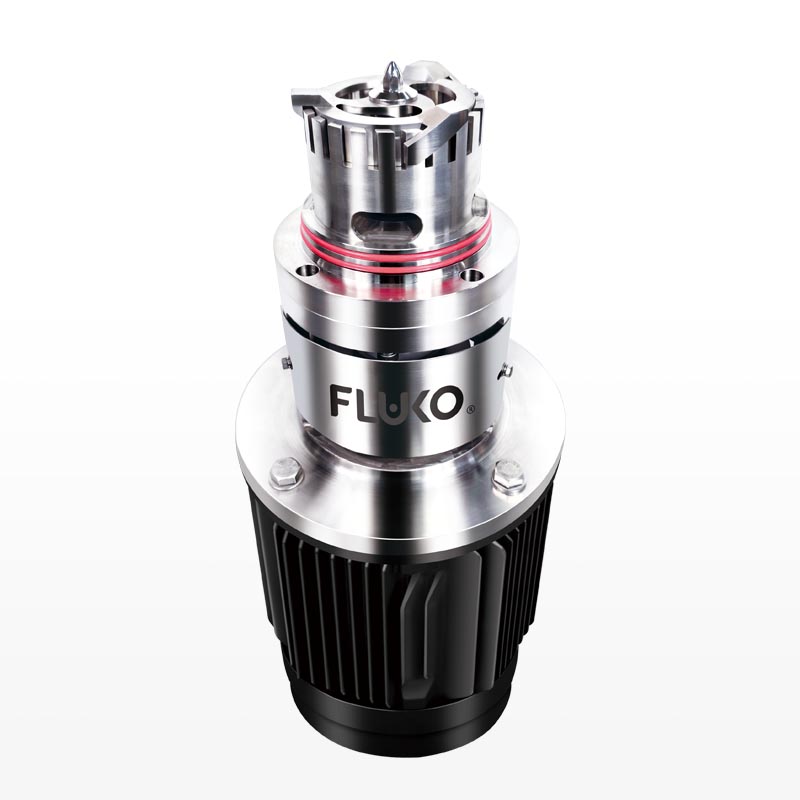

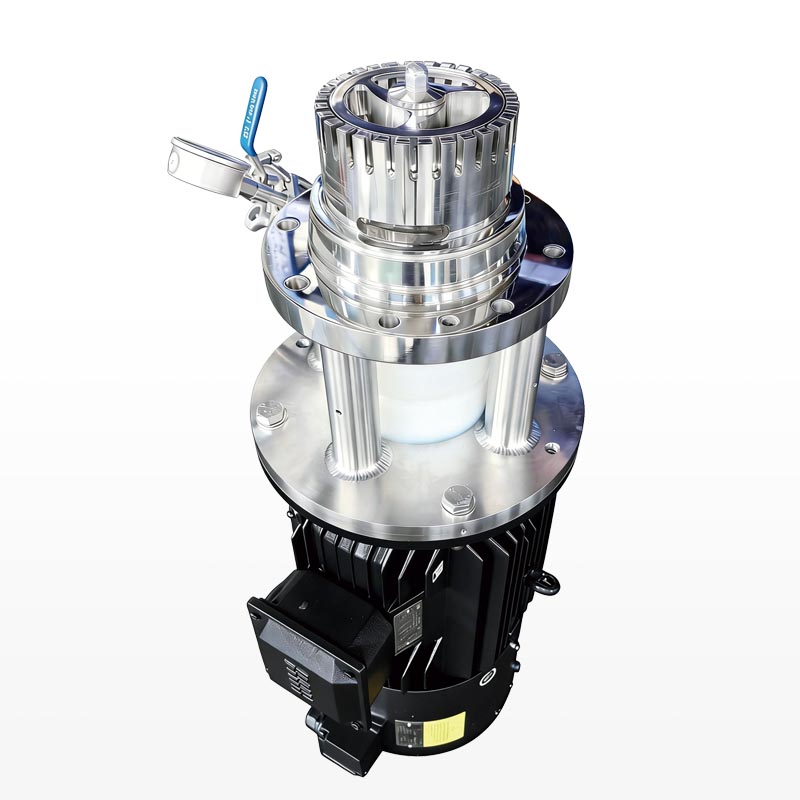

The FAE/FME/FUE/FAEP series are production-type batch process equipment installed at the bottom of the container. A variety of working heads are available, suitable for fine mixing processes of creams, lotions, and emulsions.
The FAE/FME/FUE/FAEP series are production-type batch process equipment installed at the bottom of the container. They provide a wide throughput range within the vessel, ensuring thorough internal circulation mixing of materials and providing ample shearing, dispersion, and emulsification. The working heads are available in various structures to suit different process requirements. They are suitable for the fine mixing required for products such as creams, emulsions, and suspensions.
| Model | Power (kW) | Rotation speed (rpm) | Maximum capacity (H2O) L |
| FAE/FME 60 | 1.1 | 6000 | 20 |
| FAE/FME 90 | 1.5 | 3000 | 30 |
| FAE/FME 100 | 2.2 | 3000 | 50 |
| FAE/FME 120 | 4 | 3000 | 200 |
| FAE/FME 140 | 7.5 | 3000 | 350 |
| FAE/FME 160 | 11 | 3000 | 600 |
| FAE/FME 180 | 18.5 | 3000 | 900 |
| FAE/FME 220 | 30 | 3000 | 1200 |
| FAE/FME 240 | 37 | 3000 | 2000 |
| FAE/FME 270 | 55 | 1500 | 3000 |
| FUE 90 | 2.2 | 6000 | 60 |
| FUE 100 | 3 | 3000 | 250 |
| FUE 120 | 5.5 | 3000 | 500 |
| FUE 140 | 11 | 1500/3000 | 1000 |
| FUE 160 | 15 | 1500 | 1500 |
| FUE 180 | 22 | 1500 | 2000 |
| FUE 220 | 37 | 1500 | 3500 |
| FUE 260 | 55 | 1500 | 5000 |
| FAEP60-1.5 | 1.5 | 6000 | 30 |
| FAEP90-2.2 | 2.2 | 3600 | 60 |
| FAEP100-3 | 3 | 3600 | 250 |
| FAEP120-5.5 | 5.5 | 3000 | 500 |
| FAEP140-7.5 | 7.5 | 3000 | 1000 |
