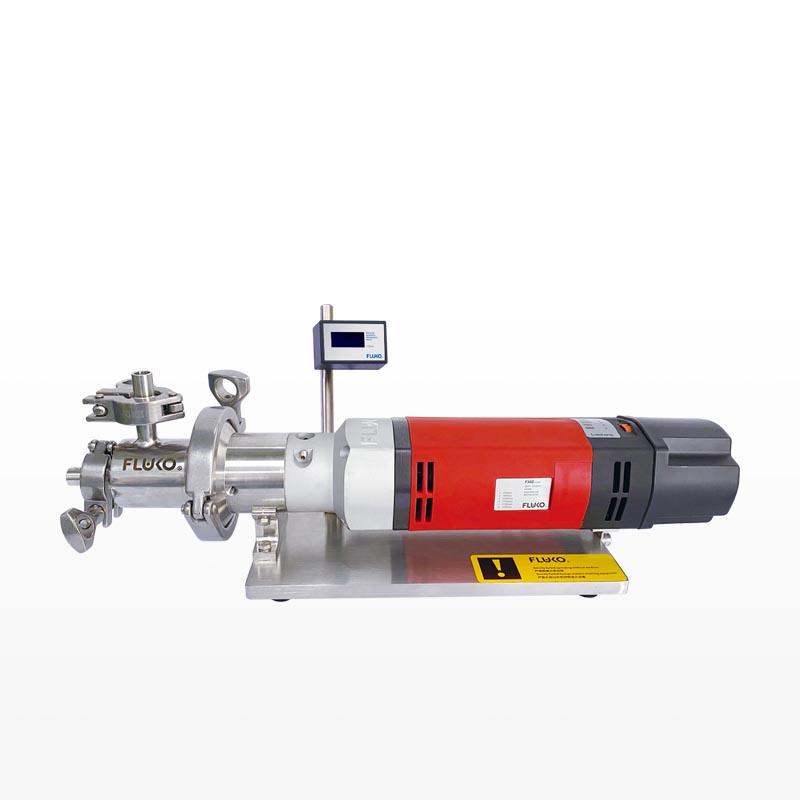

FD1/40SG is a pilot-scale inline disperser. It adopts a narrow-gap working head, providing superior shearing force, meeting hygienic standards, and can be easily integrated into production lines.
The FD1/SG40 is a pilot-scale in-line disperser with a narrow-gap working configuration, providing higher shear capacity. It easily completes in-line dispersion, emulsification, and homogenization processes in the laboratory, providing accurate references for production use. The machine has a compact structure, stable operation, adjustable and displayed speed, and its default design meets sanitary requirements. It is suitable for high-fineness processes such as dispersion, homogenization, crushing, blending, and mixing.
| Model | FD1/40SG |
| Motor power | 0.75 KW |
| Power supply | 220V |
| Speed range | 300~9000rpm |
| Temperature | AMB |
| Speed display | Digital display |
| Speed control | Frequency control |
| Inverter | Standard |
| Process type | Inline processing |
| Medium-contact material | SS316L/FFKM |
| Standard working chamber | Stainless steel |
| Seal type | Mechanical seal |
| Inlet/outlet size | 3/4“（Clamp connection） |
| Protection grade for motor hood | IP55 |
| Overall dimensions | 530x220x285 |
