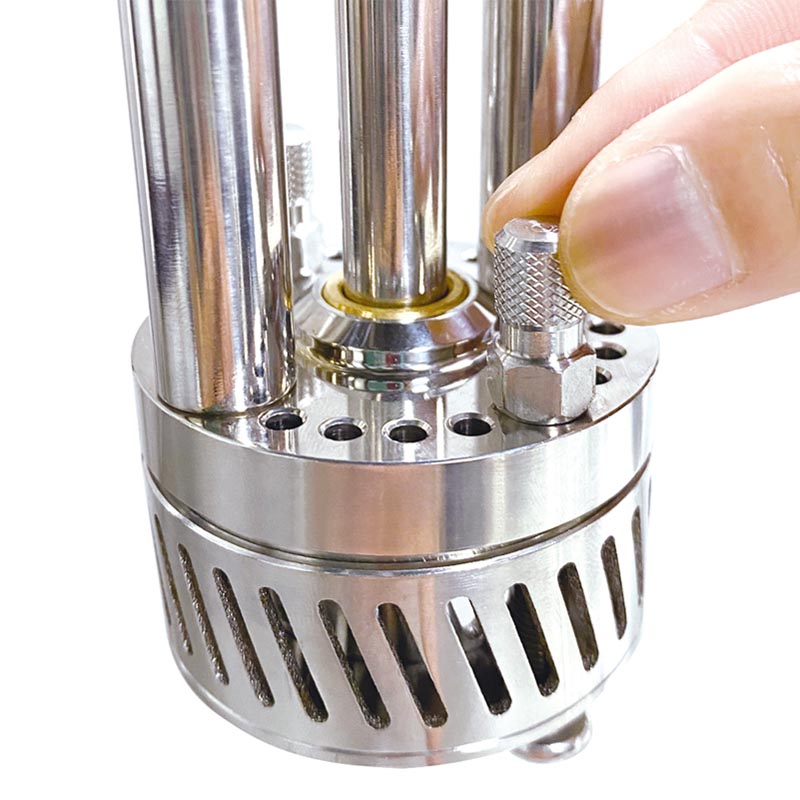

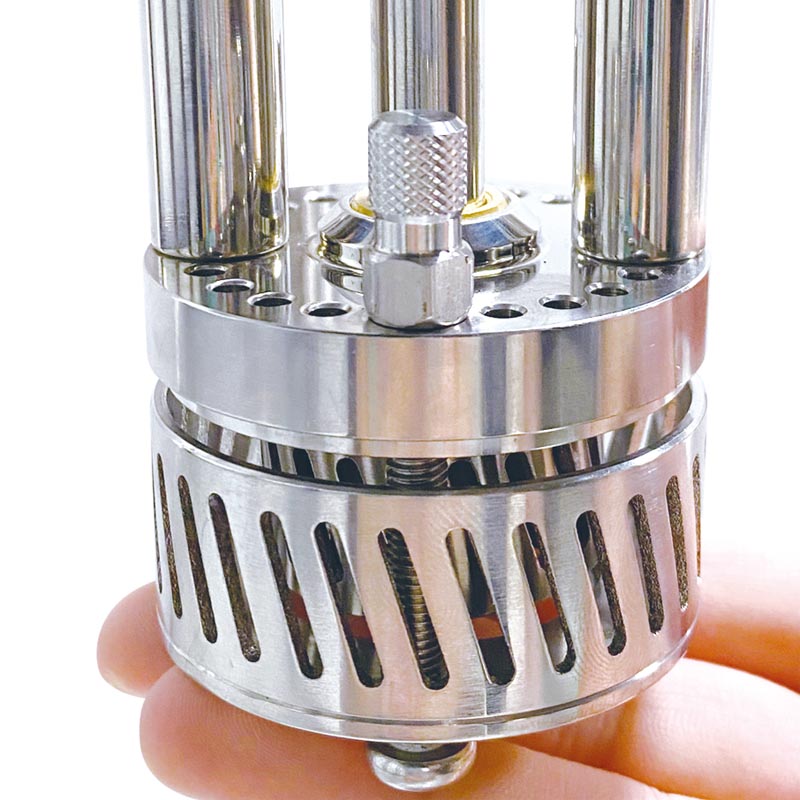

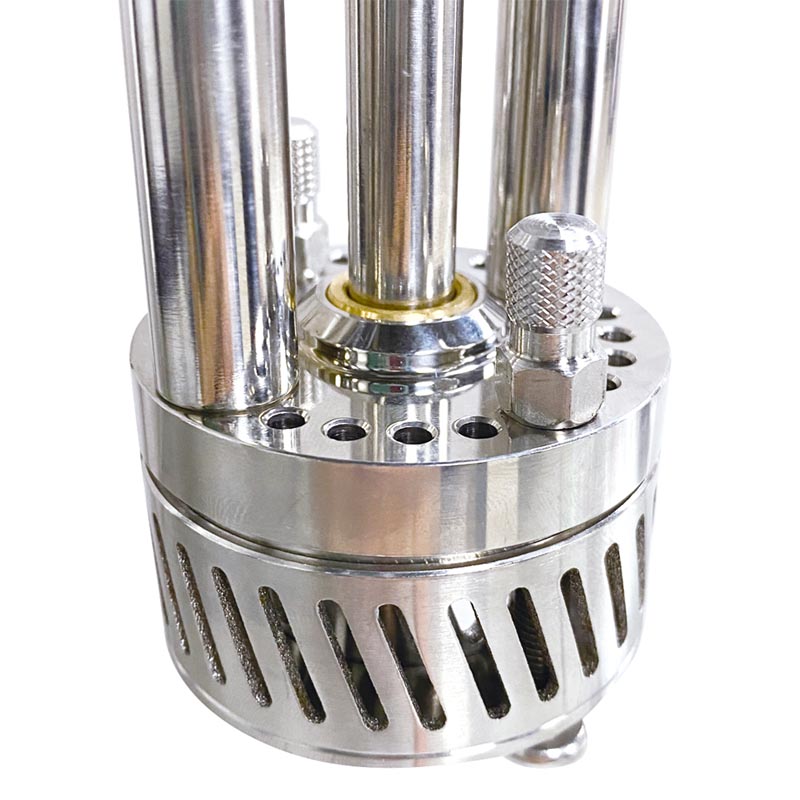

The FM20D is a small-scale, high-performance disperser with stepless speed control, suitable for dispersing, emulsifying, homogenizing, and mixing medium-viscosity materials and liquids containing solids.
The FM20D is a small-scale, high-performance disperser designed specifically for the fine processing needs of laboratories. It adopts a high-efficiency, high-shear working head and a precision transmission system, enabling stepless speed adjustment to accurately match the strength requirements of different process stages. The equipment is suitable for dispersion, emulsification, homogenization, and mixing processes of medium-viscosity materials and solid-liquid mixtures, and is widely used in research and development in the fields of chemical, pharmaceutical, food, and cosmetic industries.
| Order # | 6321000 |
| Model | FM20D |
| Motor power | 500W |
| Power supply | 220V，50Hz |
| Working capacity (H2O) | 150~3000mL |
| Maximum working viscosity | 5000cP |
| Rotation speed range | 2000~14000rpm |
| Speed display | Digital display |
| Speed control | Stepless |
| Standard Stator | Chute |
| Medium-contact material | SS316L |
| Shaft sleeve material | Copper alloy |
| Permissible temperature range | 5~40℃ |
| Permissible humidity range | 80% |
| Process type | Batch processing |
| Work frame, stand base | Standard |
| Overall dimensions | 210×290×675 |
| Weight | ~10kg |
| Package | Carton |
