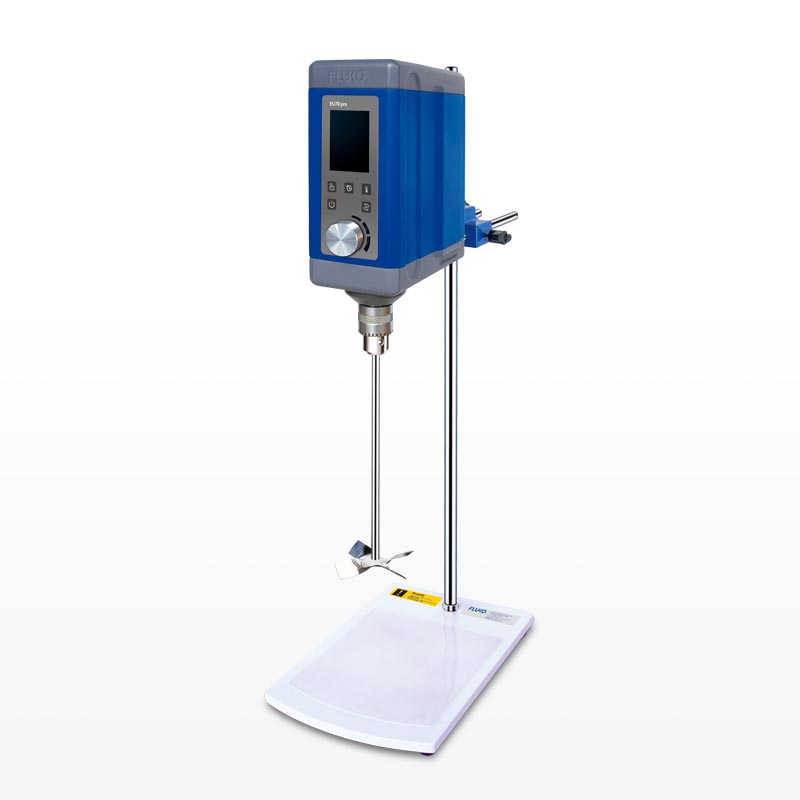

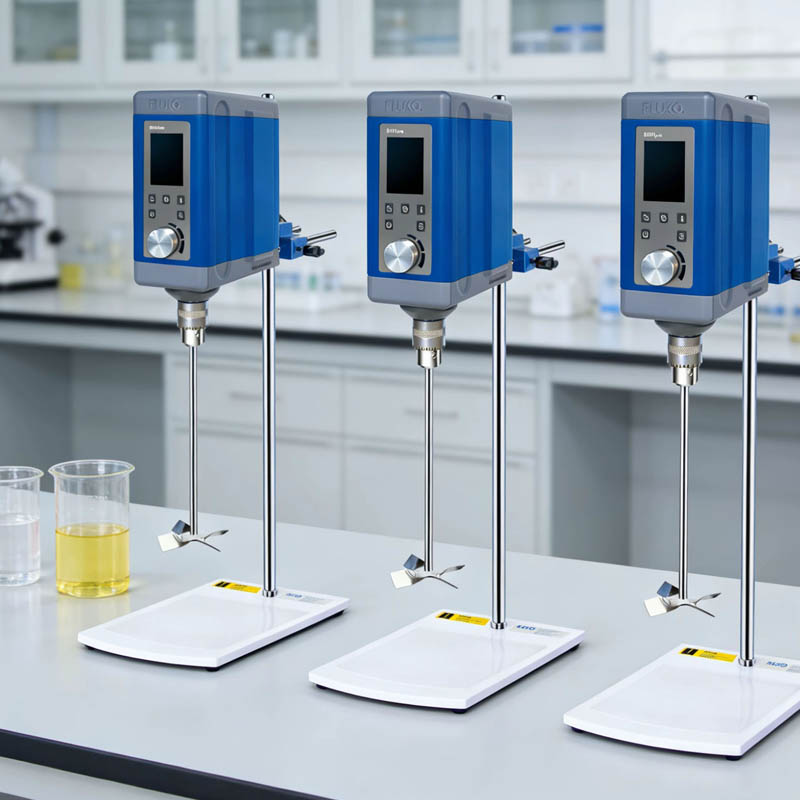

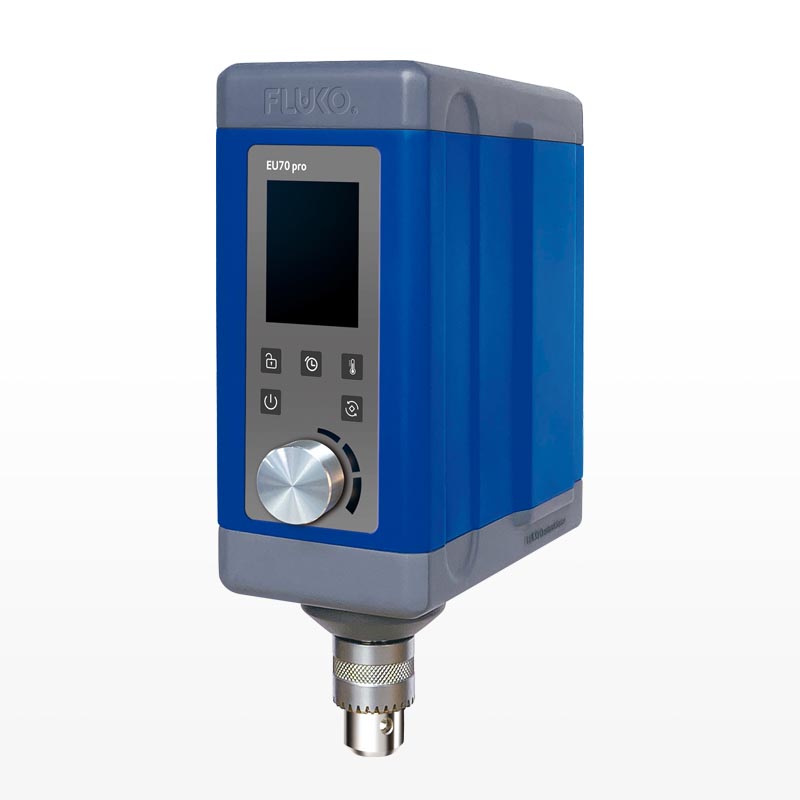

The EU Pro series is a multi-functional mixer suitable for various viscosities. It is equipped with a brushless motor, has a wide range of functions, and can be connected to a host computer for remote communication and control.
The EU Pro series is a multi-functional electric stirrer suitable for stirring systems of varying viscosities in the laboratory. Equipped with a new brushless motor and control chip, it boasts a wealth of features including powerful stirring, timer control, speed memory and automatic adjustment, dynamic speed and torque curve display, temperature measurement and display, and torque compensation. This model can be optionally equipped with a host computer and data connection capabilities to meet diverse research and development needs.
| Order # | 50010 | 50020 | 50030 | 50040 |
| Model | EU30 pro | EU50 pro | EU70 pro | EU110 pro |
| Motor power | 100W | 150W | 205W | 210W |
| Power supply | 200~240V, 50/60Hz | 200~240V, 50/60Hz | 200~240V, 50/60Hz | 200~240V, 50/60Hz |
| Maximum working capacity(H2O) | 20L | 30L | 50L | 100L |
| Maximum working viscosity | 20000cP | 40000cP | 60000cP | 80000cP |
| Speed range | 30~2000rpm | 30~2000rpm | 30~2000rpm | 30~1300rpm |
| Timing range | 0~6000mins | 0~6000mins | 0~6000mins | 0~6000mins |
| Speed memory | Yes | Yes | Yes | Yes |
| Speed control | Stepless speed regulation | Stepless speed regulation | Stepless speed regulation | Stepless speed regulation |
| Precise speed control | 1rpm | 1rpm | 1rpm | 1rpm |
| Speed display | Digital display | Digital display | Digital display | Digital display |
| Maximum output torque | 30N.cm | 50N.cm | 70N.cm | 110N.cm |
| Shaft length | Adjustable | Adjustable | Adjustable | Adjustable |
| Standard dispersing agitator | Four blade agitator | Four blade agitator | Four blade agitator | Four blade agitator |
| Standard agitator material | SS316L | SS316L | SS316L | SS316L |
| Agitator fixation | Drill chuck | Drill chuck | Drill chuck | Drill chuck |
| Clench diameter range | 0.5~10mm | 0.5~10mm | 0.5~10mm | 0.5~10mm |
| Forward and reverse rotation switching | Yes | Yes | Yes | Yes |
| Button lock | Yes | Yes | Yes | Yes |
| Button dynamic monitoring and display | Yes | Yes | Yes | Yes |
| Speed dynamic detection and display | Yes | Yes | Yes | Yes |
| Host computer and data connection | Yes (software EU control for optional) | Yes (software EU control for optional) | Yes (software EU control for optional) | Yes (software EU control for optional) |
| Intermittent control | Yes (software EU control for optional) | Yes (software EU control for optional) | Yes (software EU control for optional) | Yes (software EU control for optional) |
| Dumping protection | Yes (automatic shutdown at 30 degrees tilt) | Yes (automatic shutdown at 30 degrees tilt) | Yes (automatic shutdown at 30 degrees tilt) | Yes (automatic shutdown at 30 degrees tilt) |
| Temperature measurement function | Yes | Yes | Yes | Yes |
| External temperature sensor | PT1000 (for optional) | PT1000 (for optional) | PT1000 (for optional) | PT1000 (for optional) |
| Temperature measurement range | -50~400℃ | -50~400℃ | -50~400℃ | -50~400℃ |
| Temperature Measurement Accuracy | 0.15+0.002｜t｜℃ | 0.15+0.002｜t｜℃ | 0.15+0.002｜t｜℃ | 0.15+0.002｜t｜℃ |
| Temperature display function | Yes | Yes | Yes | Yes |
| Overheat protection | 75℃ | 75℃ | 75℃ | 75℃ |
| Working temperature | 5~40℃ | 5~40℃ | 5~40℃ | 5~40℃ |
| Allowable relative humidity | 80% | 80% | 80% | 80% |
| Working frame, Base | Standard(Optional for gas spring bracket) | Standard(Optional for gas spring bracket) | Standard(Optional for gas spring bracket) | Standard(Optional for gas spring bracket) |
| Class of protection | IP30 | IP30 | IP30 | IP30 |
| Communication interface | DB-9/USB-Type c | DB-9/USB-Type c | DB-9/USB-Type c | DB-9/USB-Type c |
| Shell material | Aluminium alloy | Aluminium alloy | Aluminium alloy | Aluminium alloy |
| Package size | 220x350x720 | 220x350x720 | 220x350x720 | 220x350x720 |
| Weight | ~5.9kg | ~5.9kg | ~5.9kg | ~5.9kg |
| Package | Carton | Carton | Carton | Carton |
