The FZ (D) series is a pilot-scale in-line disperser with ultra-high shear rate and no dead zones in dispersion. It can be used in the laboratory to simulate in-line circulation or continuous processing of materials.
The FZ(D) series is a pilot-scale in-line disperser. Its unique stator-rotor structure generates superior shearing force and high linear velocity, rapidly reducing particle size and resulting in finer, more uniform material dispersion. It can be used in laboratory simulations for in-line circulation or continuous in-line processing. It features high efficiency, homogenization, and the elimination of dead zones in dispersion.
| Order # | 6512000 | 6512001 | 6522000 | 6534000 | 6532000 | 6544000 |

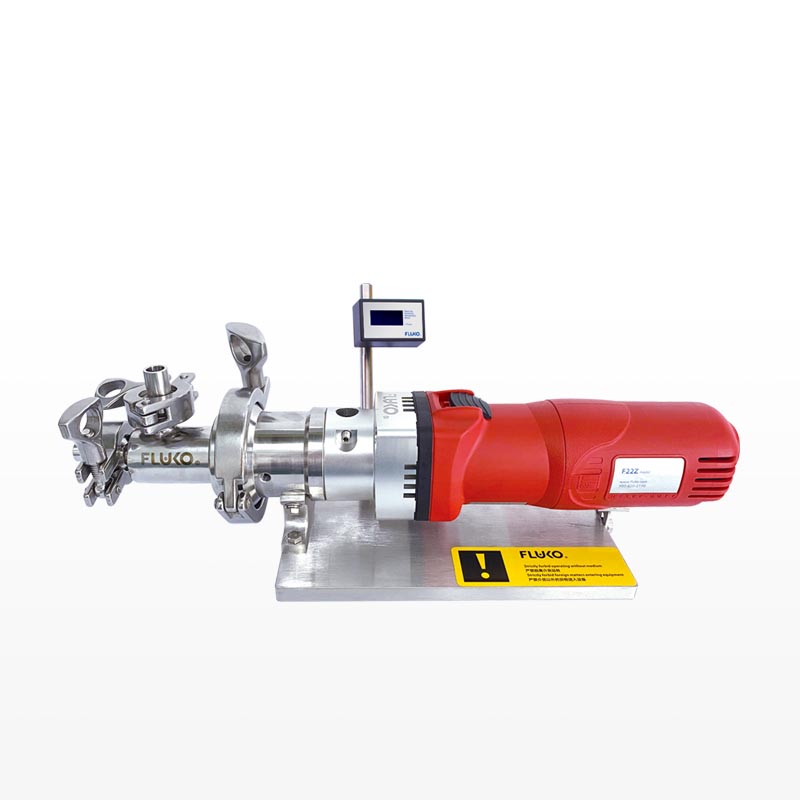

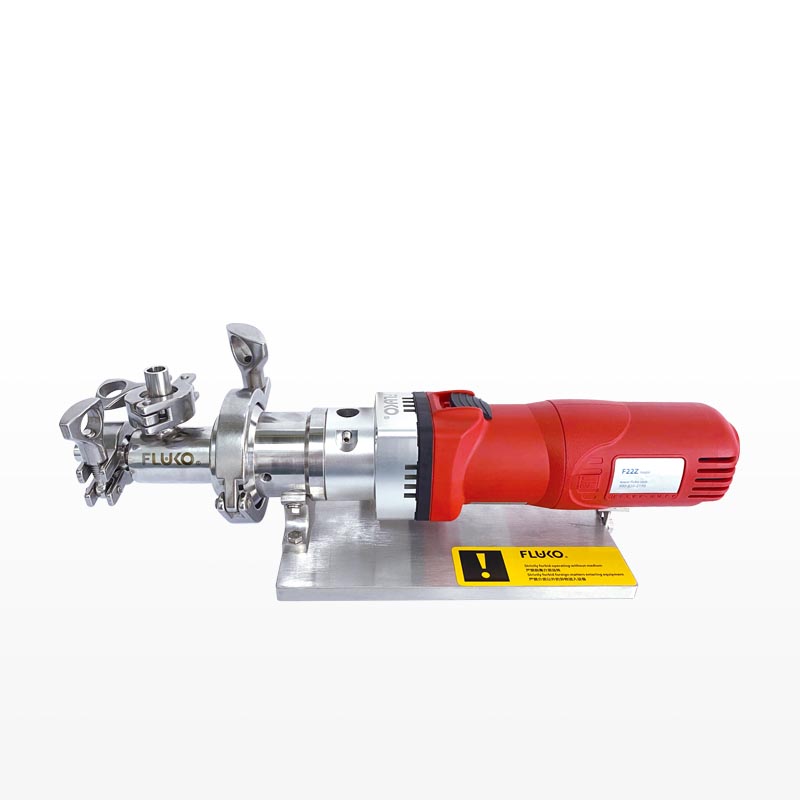

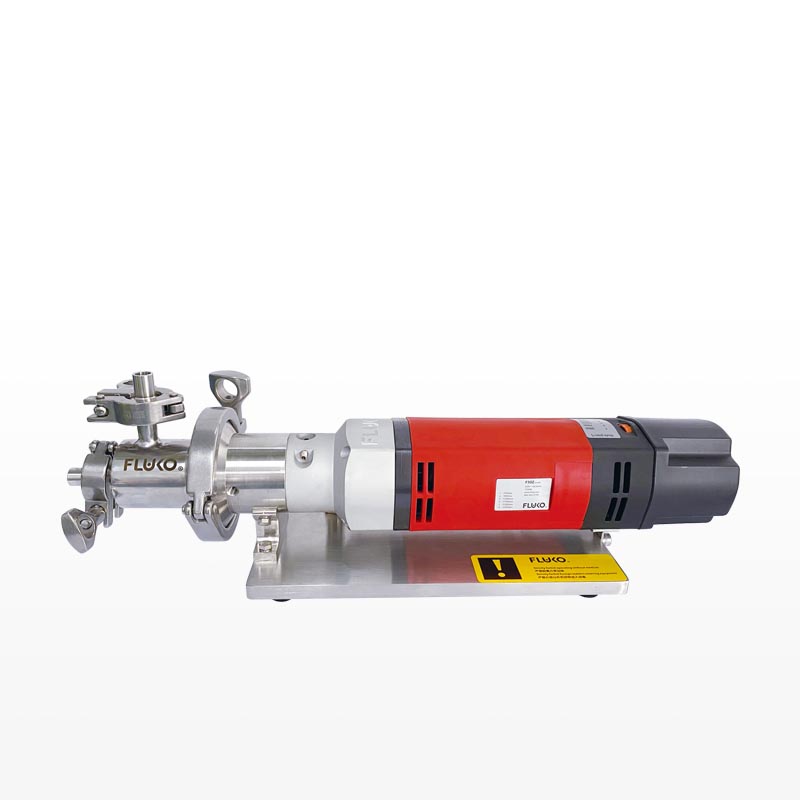

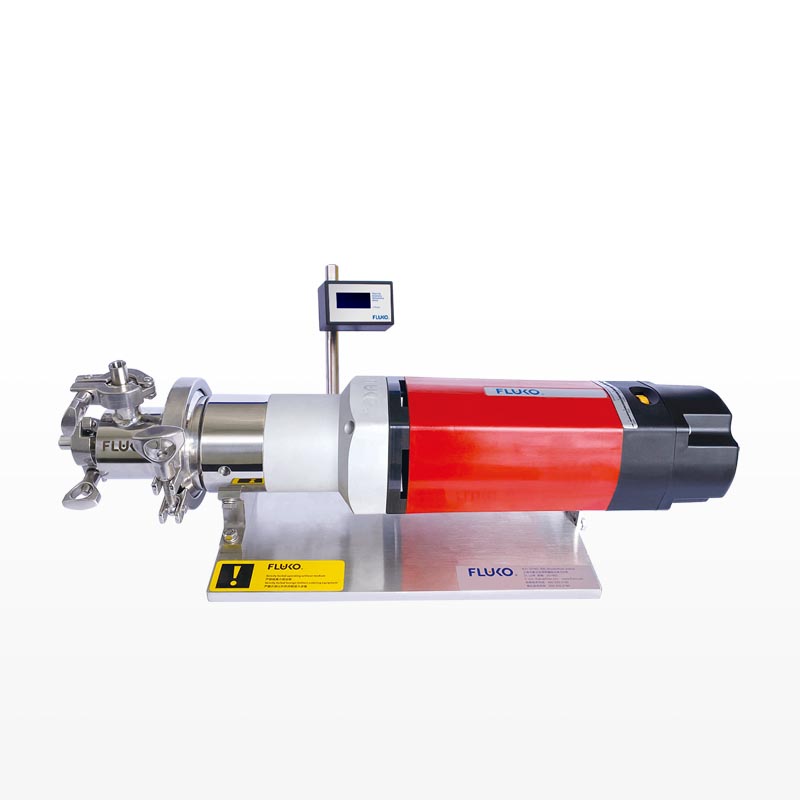

| Model | F22Z | F22ZD | F30Z | F30ZD | F40Z | F40ZD |
| Motor power | 500W | 500W | 1050W | 1050W | 1800W | 1800W |
| Power supply | 220V，50Hz | 220V，50Hz | 220V，50/60Hz | 220V，50/60Hz | 220V，50/60Hz | 220V，50/60Hz |
| Flow rate range (H2O) | 1-15L/min | 1-15L/min | 1-20L/min | 1-20L/min | 1-30L/min | 1-30L/min |
| Maximum working viscosity | 1000cP | 1000cP | 1000cP | 1000cP | 1000cP | 1000cP |
| Rotation speed range | 10000-28000rpm | 10000-28000rpm | 3500-25000rpm | 3500-25000rpm | 2500-23500rpm | 2500-23500rpm |
| Maximum working temperature | 120℃ | 120℃ | 120℃ | 120℃ | 120℃ | 120℃ |
| Speed display | Scale/Digital | Scale/Digital | Scale/Digital | Scale/Digital | Scale/Digital | Scale/Digital |
| Speed control | Stepless | Stepless | Stepless | Stepless | Stepless | Stepless |
| Medium-contact material | SS316L、FKM | SS316L、FKM | SS316L、FKM | SS316L、FKM | SS316L、FKM | SS316L、FKM |
| Standard working chamber | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Standard agitator | 20DG | 20DG | 25DG | 25DG | 40DG | 40DG |
| Mechanical seal material | SIC、FKM | SIC、FKM | SIC、FKM | SIC、FKM | SIC、FKM | SIC、FKM |
| Inlet/outlet size | 14 (Hose connection) | 14 (Hose connection) | 14 (Hose connection) | 14 (Hose connection) | 18 (Hose connection) | 18 (Hose connection) |
| Process type | Inline processing | Inline processing | Inline processing | Inline processing | Inline processing | Inline processing |
| Working base material | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 |
| Overall dimensions | 362×120×112 | 362×120×112 | 439×120×132 | 439×120×132 | 515×180×150 | 515×180×150 |
| Weight | ~6kg | ~6kg | ~7kg | ~7kg | ~12kg | ~12kg |
