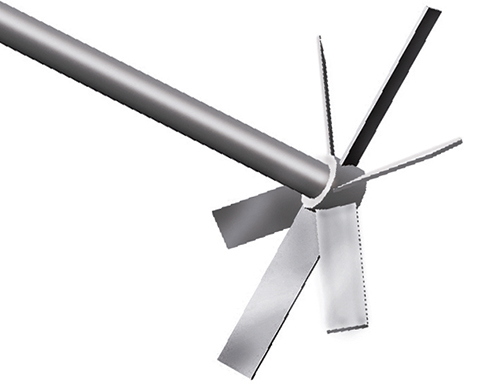

折叶开启涡轮式搅拌桨

Fold Impeller Turbine Agitator

Order #	Agitator Diameter(mm)	Agitator Length(mm)	Medium Contact Material	Working Viscosity(cP)	Applicable Speed Rotation(rpm)
923	60	300	SS316L	＜10000	＜2000
949	110	320	SS316L	＜10000	＜2000

Product Details

Flow can be radical or circulatory

Technical Parameter

命令#	搅拌器直径（毫米）	搅拌器长度（毫米）	介质接触材料	工作粘度（cP）	适用转速（rpm）
901	60	300	316L不锈钢	＜10000	＜2000
974	100	320	316L不锈钢	＜10000	＜2000
909	110	320	316L不锈钢	＜10000	＜2000

Related Accessories

Get In Touch for More Information

Related Product

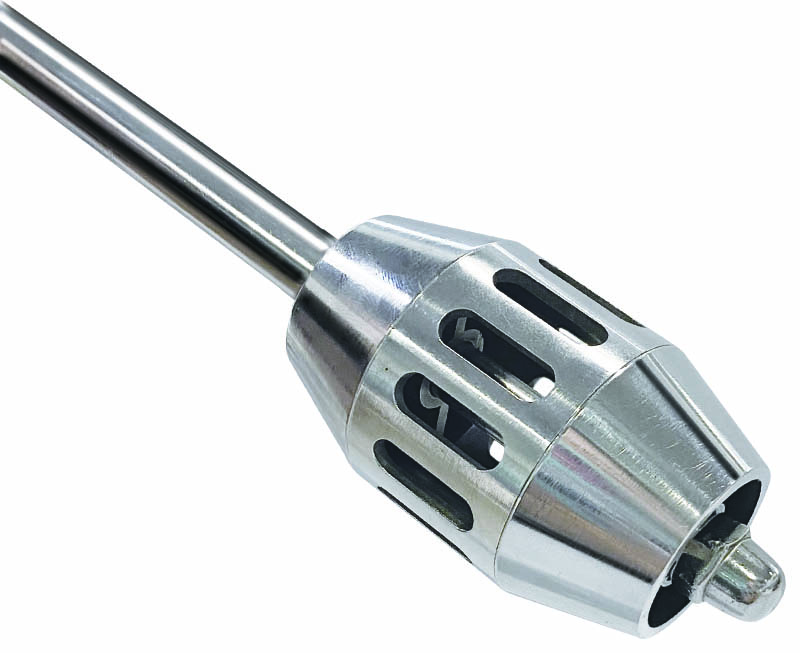

Double cone vortex agitator B

Order #	Agitator Diameter(mm)	Agitator Length(mm)	Medium Contact Material	Working Viscosity(cP)	Applicable Speed Rotation(rpm)
977	25	300	SS316L	＜10000	＜3000
978	36	320	SS316L	＜10000	＜3000

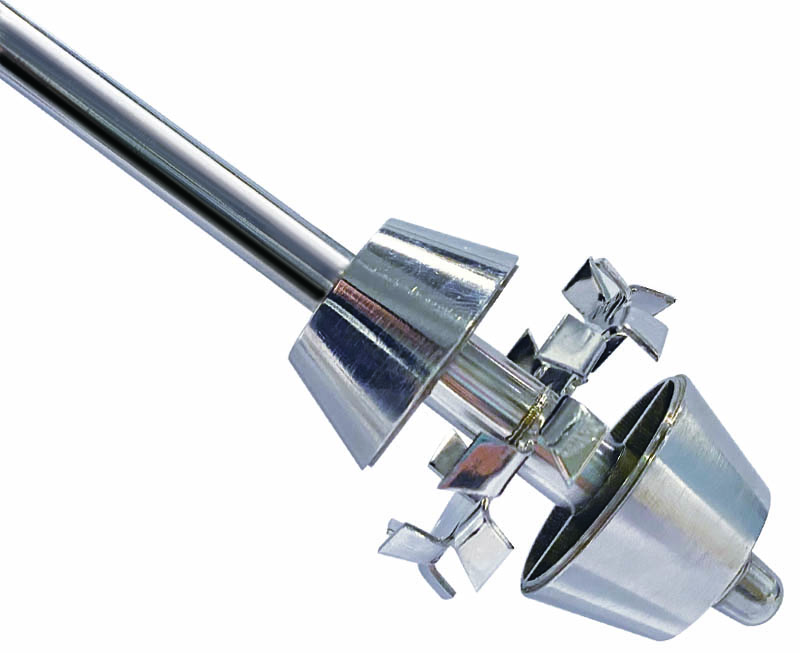

Double cone vortex agitator A

Order #	Agitator Diameter(mm)	Agitator Length(mm)	Medium Contact Material	Working Viscosity(cP)	Applicable Speed Rotation(rpm)
975	35	300	SS316L	＜10000	＜3000
978	50	320	SS316L	＜10000	＜3000

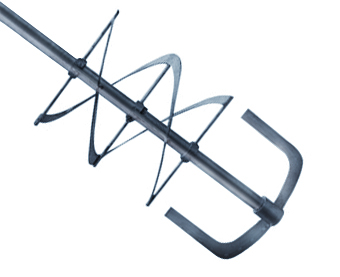

Anchor Ribbon Screw Agitator

Order #	Agitator Diameter(mm)	Agitator Length(mm)	Medium Contact Material	Working Viscosity(cP)	Applicable Speed Rotation(rpm)
932	104	300	SS316L	＜10000	＜200
958	150	320	SS316L	＜10000	＜200

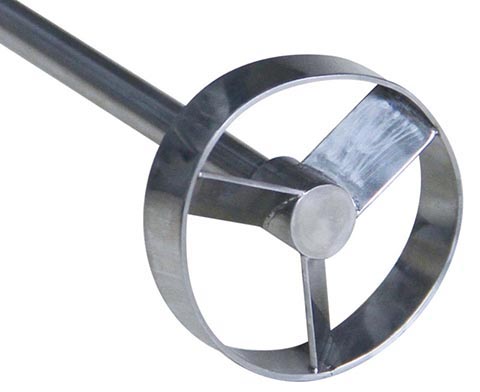

Turbine Agitator

Order #	Agitator Diameter(mm)	Agitator Length(mm)	Medium Contact Material	Working Viscosity(cP)	Applicable Speed Rotation(rpm)
941	50	300	SS316L	＜10000	＜2000
967	80	320	SS316L	＜10000	＜2000

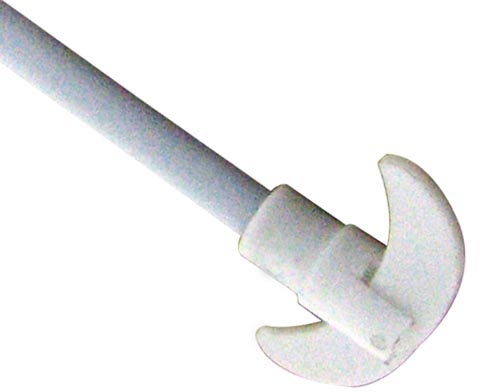

PTFE Coating Crescent Agitator

Order #	Agitator Diameter(mm)	Agitator Length(mm)	Medium Contact Material	Working Viscosity(cP)	Applicable Speed Rotation(rpm)
907	60/25	300	SS316L	＜2000	＜2000
915	100/30	320	SS316L	＜2000	＜2000

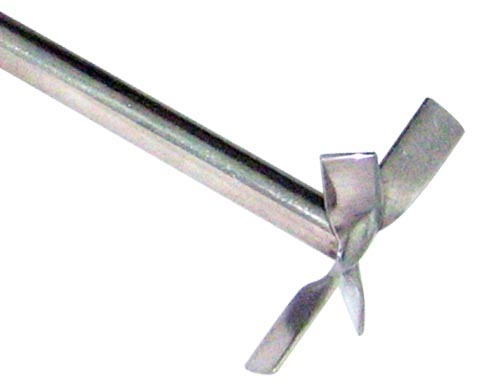

Four-blade Agitator
