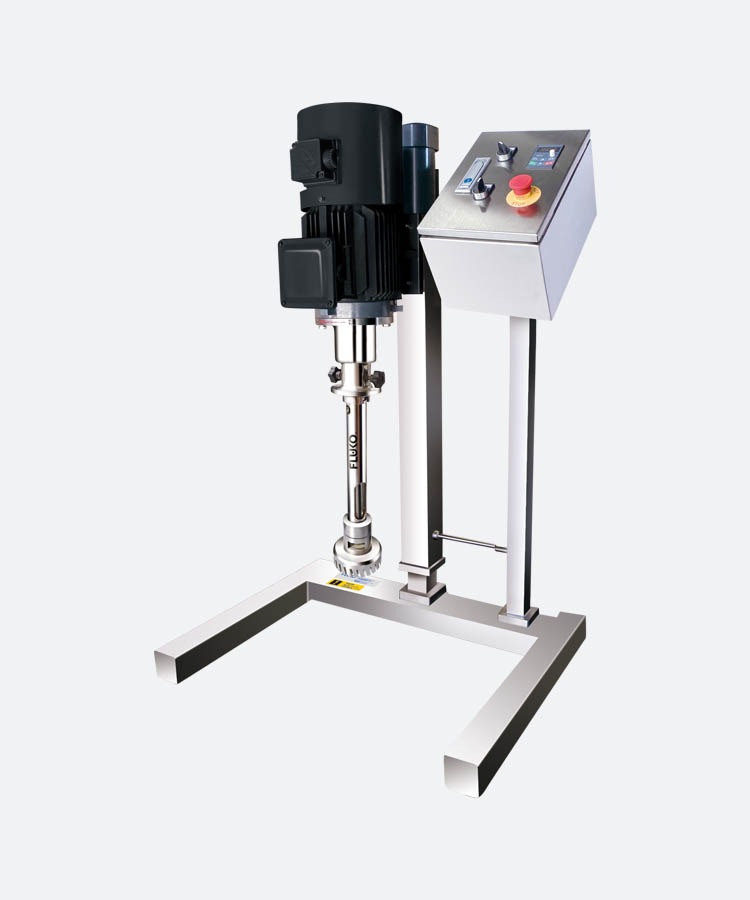

FA90
Designed for pilot production, analog production and factory small batch production with a maximum capacity of 50L. According to different material and process requirements, the stator and rotor can be replaced freely. It can provide strong dispersion, emulsification, homogenization ability. The machine offers frequency conversion, speed display, electric lifting and other functions.
Pilot for mixing, dispersing, homogenizing, emulsifying, solid-liquid mixing and other processes.
TECHNICAL PARAMETER
| Motor power | 1500W |
| Power supply | 220V，50Hz |
| Working capacity (H₂O) | 10-50L |
| Maximum working viscosity | 8000cP |
| Speed range | 600-3600rpm |
| Speed display | Digital display |
| Speed control | Frequency control |
| Medium-contact material | SS316L |
| Shaft sleeve material | PTFE |
| Standard dispersing agitator | 90F |
| Permissible temperature range | 5-40℃ |
| Permissible humidity range | ≤80% |
| Protection grade for motor hood | IP54 |
| Inverter | Standard |
| Overload protection | Yes |
| Process type | Batch processing |
| Work frame, stand base | Electric lifting |
| Work frame, stand base material | SS304 |
| lifting range | 400 |
| Overall dimensions | 710×550×1060 |
| Weight | ~50kg |
| Package | Wooden case |
