ER60 pro

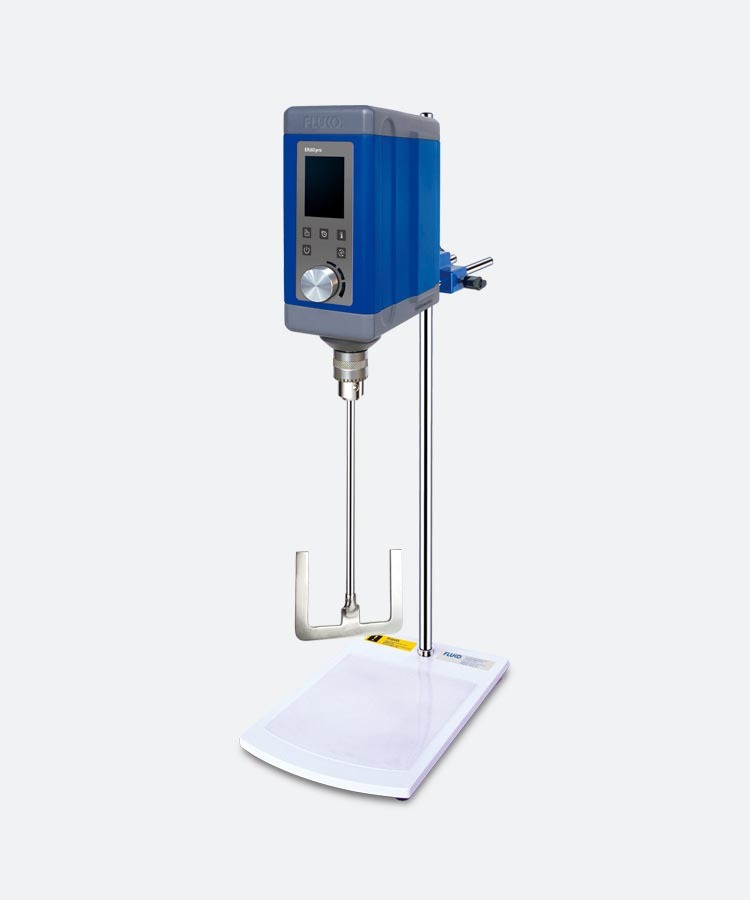

ER60 pro multi-function electric stirrer is suitable for mixing liquids of varying viscosity in the laboratory.With new brushless motor and control chip, inculding function of strong mixing, timing control, speed memory and automatic adjustment, speed and torque dynamic curve display, temperature measurement and display, torque compensation etc. Sensitive touch button and one-button shuttle button, which makes the operation easier.This model can be equipped with host computer and data connection function, which can be easily integrated into modules and systems to meet diverse research and development needs.

Multi-function
It has the functions of timing switch, forward and reverse rotation of the spindle, speed memory, torque display, temperature measurement, data output, data connection, etc.

Excellent performance
Stable operation with the strong power, processing maximum of capacity 50L, maximum output torque 320N·cm.

Safe and reliable
The motor has functions such as overheat protection, overload protection, dumping shutdown protection, etc.


-TFT LCD display
-Timing operation
-Programmable function
-Torque dynamic measurement
-Penetrating stirrer
-Temperature measurement
-Data external function
-Silent operation
-Overload protection

TECHNICAL PARAMETER

Order # 50050
Power supply 200~240V, 50/60Hz
Motor Brushless DC motor
Maximum working capacity (H₂O) 50L
Maximum working viscosity 100000cP
Speed range 8~330rpm
Timing range 0~6000mins
Speed control Stepless shuttle speed regulation
Precise speed control 1rpm
Speed display TFT color LCD
Speed dynamic detection and display Yes
Button dynamic monitoring and display Yes
Maximum output torque 320N·cm
Shaft length Adjustable
Standard dispersing agitator Anchor  Agitator
Standard agitator material SS316L
Agitator fixation Drill chuck
Clench diameter range 0.5~10mm
Forward and reverse rotation switching Yes
Dumping protection Yes (automatic shutdown at 30 degrees tilt)
External temperature sensor PT1000
Temperature measurement range -50~300℃
Dynamic temperature monitoring and display Yes
Temperature Measurement Accuracy 0.1℃
Button lock and display Yes
Host computer and data connection Yes
Intermittent control Yes(Flukolabsoft)
Interval program save and load Yes
Working temperature 5~40℃
Allowable relative humidity 80%
Overheat protection 75℃
Class of protection IP30
Fault display Yes
USB port DB-9、USB Type-C
Communication protocol RS485
PC software Flukolabsoft (Wired or Bluetooth connection)
Shell material Aluminium alloy
Package size 110x220x235
Weight ~5.9kg
Package Carton
