FM30D
Double stator design, stepless speed change and strong torque output. The double stator structure increases the shearing effect twofold. It is equipped with many kinds of stator and can be used interchangeably according to process requirements.
Suitable for dispersing, emulsifying, homogenizing and mixing of medium viscosity materials solids and liquids.
TECHNICAL PARAMETER
| Motor power | 500W |
| Power supply | 220V，50Hz |
| Working capacity (H₂O) | 200-10000mL |
| Maximum working viscosity | 5000cP |
| Speed range | 2000-14000rpm |
| Speed display | Digital display |
| Speed control | Stepless |
| Medium-contact material | SS304 |
| Shaft sleeve material | Copper alloy |
| Permissible temperature range | 5-40℃ |
| Permissible humidity range | ≤80% |
| Process type | Batch processing |
| Work frame, stand base | Standard |
| Overall dimensions | 215×310×730 |
| Weight | ~10kg |
| Package | Carton |

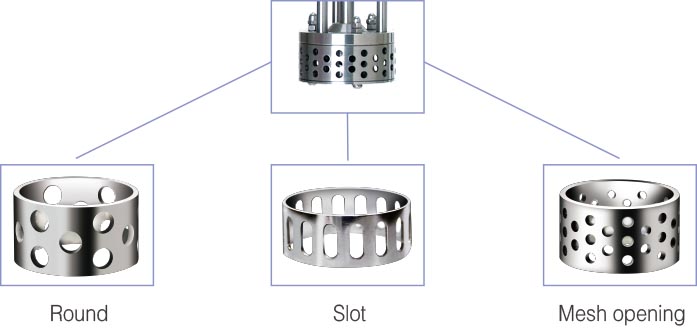

| Stator type | Round, slot, mesh opening |
| Standard Stator | Round |
