FAE Series

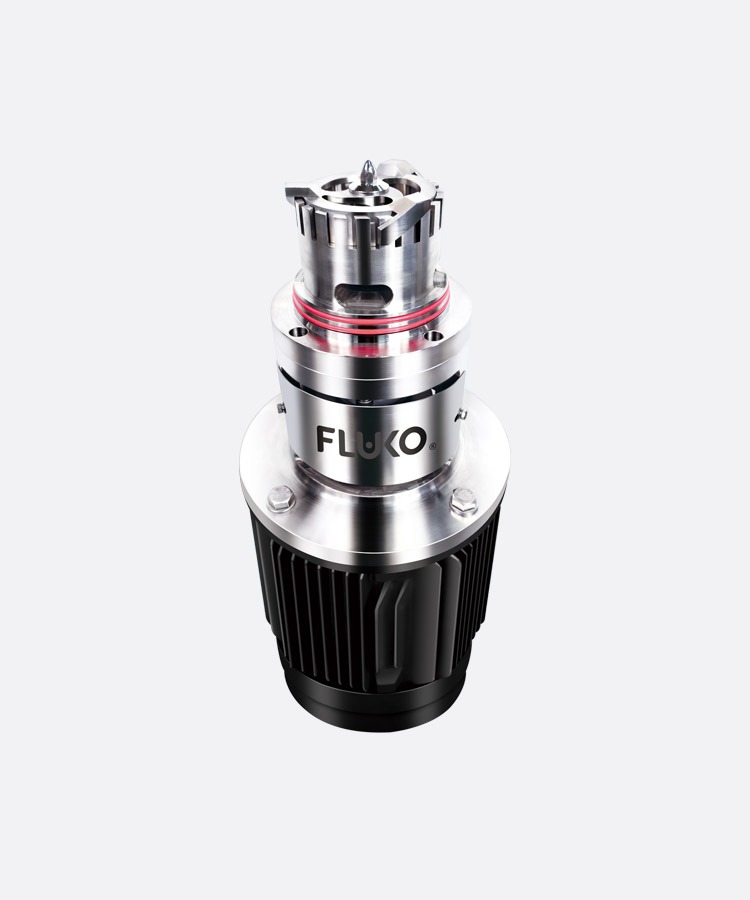

The high shear dispersing emulsifier installed at the bottom of the container can provide a wide range of processing capacity in the container, conduct sufficient internal circulation mixing of materials, and provide sufficient shear, dispersion, and emulsification.
Suitable for fine mixing of creams, emulsions, suspensions and other products.
Notes:
The maximum capacity in the table refers to the data measured when the medium is" water"; lf the medium viscosity or solid content is high, it is recommended to use it in conjunction with inline high shear dispersing emulsifier;
lf there are special conditions such as high temperature, high pressure, flammable, explosive, corrosion, etc., detailed and accurate parameters must be provided;
The data in this table is subject to change without notice. The correct parameters are subject to the actual product provided.
Please consult FLUKO for more models...
| Model | Power(kW) | Rotation Speed(rpm) | Working Capacity(L) |
| FAE60 | 1.1 | 6000 | 20 |
| FAE90 | 1.5 | 3000 | 30 |
| FAE100 | 2.2 | 3000 | 50 |
| FAE120 | 4 | 3000 | 200 |
| FAE140 | 7.5 | 3000 | 350 |
| FAE160 | 11 | 3000 | 600 |
| FAE180 | 18.5 | 3000 | 900 |
| FAE220 | 30 | 3000 | 1200 |
| FAE240 | 37 | 3000 | 2000 |
| FAE270 | 55 | 1500 | 3000 |
Remarks
- Maximum working capacities in the above table are based on a water medium.
- Inline high shear dispersing emulsifiers are recommended for high viscosity and high solid content materials.
- Customers should provide detailed information regarding special working conditions such as high temperature and pressure, flammable, explosive or corrosive conditions.
- FLUKO reserves the right to change specifications without announcement.
- For more models, please contact FLUKO.
