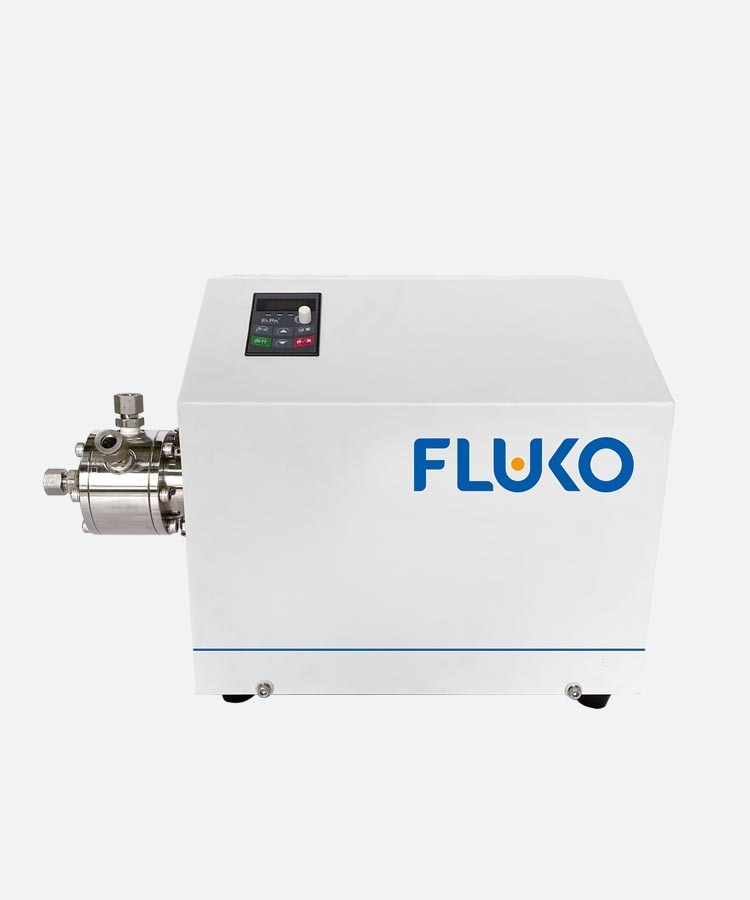

FD30
Description
FD30 microtubule jet high shear mixer adopts FLUKO unique multi-layer stator & rotor structure, equipped with 18000rpm high-speed motor, the highest working temperature to 250℃, the highest working pressure to 20bar, contact material can be made of stainless steel 304, 316L, hastelloy or special material, providing reliable inline fine mixing for a variety of reactions, catalysis, process strengthening, new materials research and process research.
FD30 microtubule jet high shear mixer adopts FLUKO unique multi-layer stator & rotor structure, equipped with 18000rpm high-speed motor, the highest working temperature to 250℃, the highest working pressure to 20bar, contact material can be made of stainless steel 304, 316L, hastelloy or special material, providing reliable inline fine mixing for a variety of reactions, catalysis, process strengthening, new materials research and process research.
TECHNICAL PARAMETER
| Model | FD30 |
| Power supply | 220V/50 Hz |
| Motor power | 1.5 kW |
| Motor type | Frequency conversion high speed motor |
| Speed control | Frequency control |
| Displayed parameters | Rotation speed/electric current |
| Rotation speed range | 12000~18000 rpm |
| Flow rate (H₂O) | ~3.3 L/min |
| Max viscosity | 1000 cP |
| Working temperature range | 0-250 ℃ |
| Working pressure range | -0.098~2.0 MPa |
| Max linear velocity | 21.6 m/s |
| Agitator | Multi-layer design |
| Type of seal | Combined type mechanical seal |
| Type of mechanical seal cooling | Circulating coolant(by customer) |
| Contact part metal material | Stainless steel, Hastelloy or other material |
| Contact part non-metal material | FFKM |
| Other metal material | SS304 |
| Material of protection cover | C.S coated |
| Material of static ring and dynamic ring | Silicon carbide |
| Working chamber | Chamber with jacket |
| Inlet/outlet | Rc 3/8" clamp（OD φ 12） |
| Jacket inlet/outlet | Rc 3/8" clamp（OD φ 12） |
| Mechanical seal coolant inlet/outlet | φ 8 quick connector |
| Mechanical seal leakage observation port | φ 8 quick connector |
