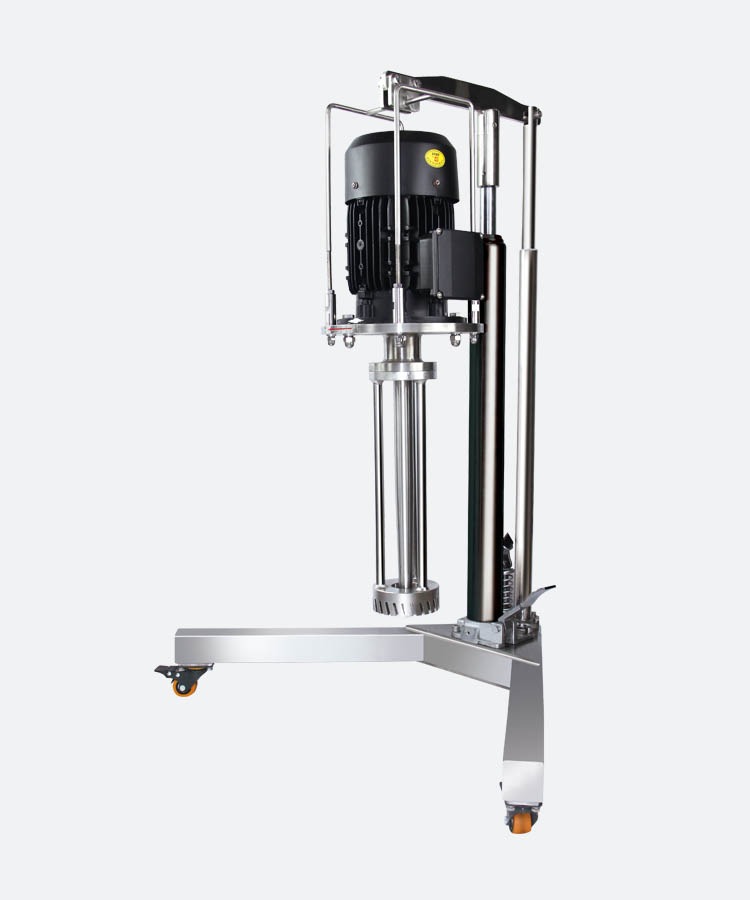

FA90C
Designed for pilot production, analog production and factory small batch production with a maximum capacity of 50L. The standard agitator has dispersion, emulsification and homogeneous balanced design, providing efficient fine mixing ability. The machine offers frequency conversion, speed display, manual hydraulic lifting and other functions.
Pilot for mixing, dispersing, homogenizing, emulsifying, solid-liquid mixing and other processes.
TECHNICAL PARAMETER
| Motor power | 1500W |
| Power supply | 220V，50Hz |
| Working capacity (H₂O) | 10-50L |
| Maximum working viscosity | 8000cP |
| Speed range | 600-3600rpm |
| Speed display | Digital display |
| Speed control | Frequency control |
| Medium-contact material | SS316L |
| Shaft sleeve material | PTFE |

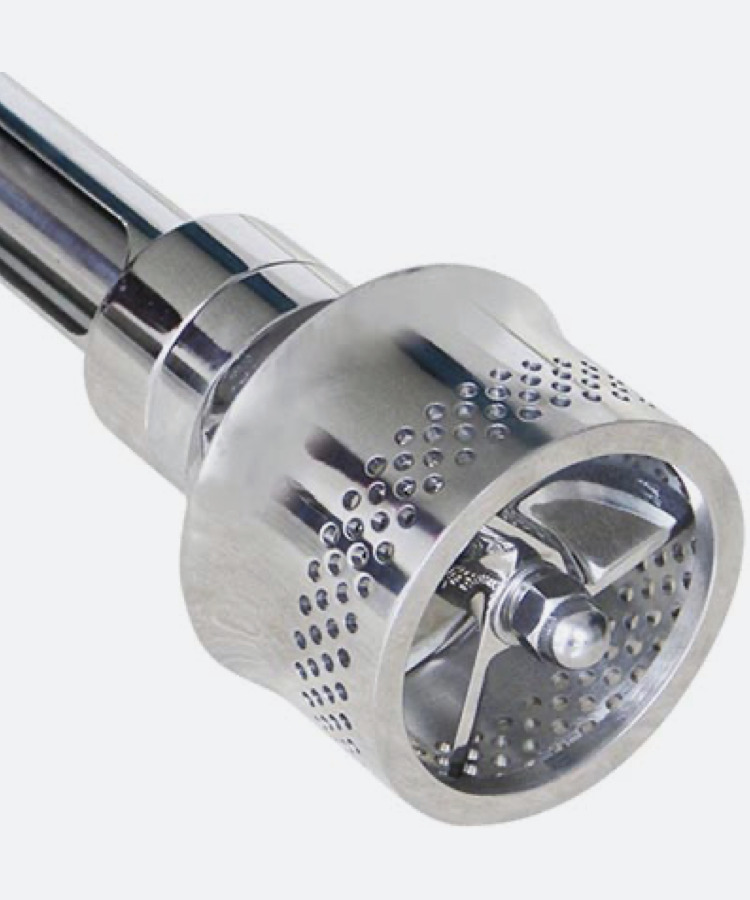

| Standard dispersing agitator | 90F |
| Permissible temperature range | 5-40℃ |
| Permissible humidity range | ≤80% |
| Protection grade for motor hood | IP54 |
| Inverter | Standard |
| Overload protection | Yes |
| Process type | Batch processing |
| Work frame, stand base | Manual lifting |
| Work frame, stand base material | SS304 |
| lifting range | 450 |
| Overall dimensions | 800×650×1000 |
| Weight | ~50kg |
| Package | Wooden case |
